I. Application Fields & National Standard Basis

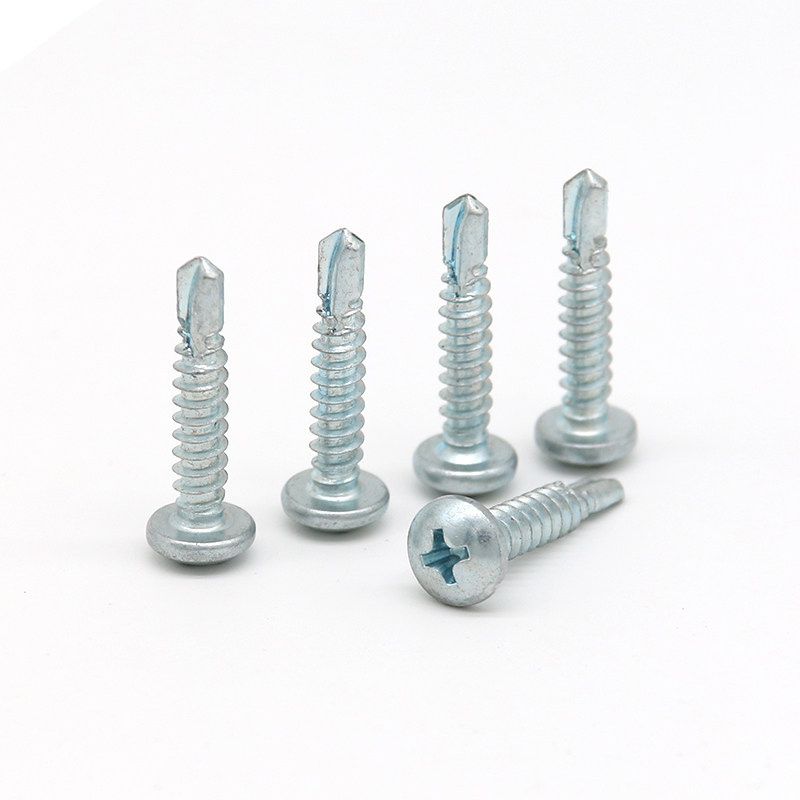

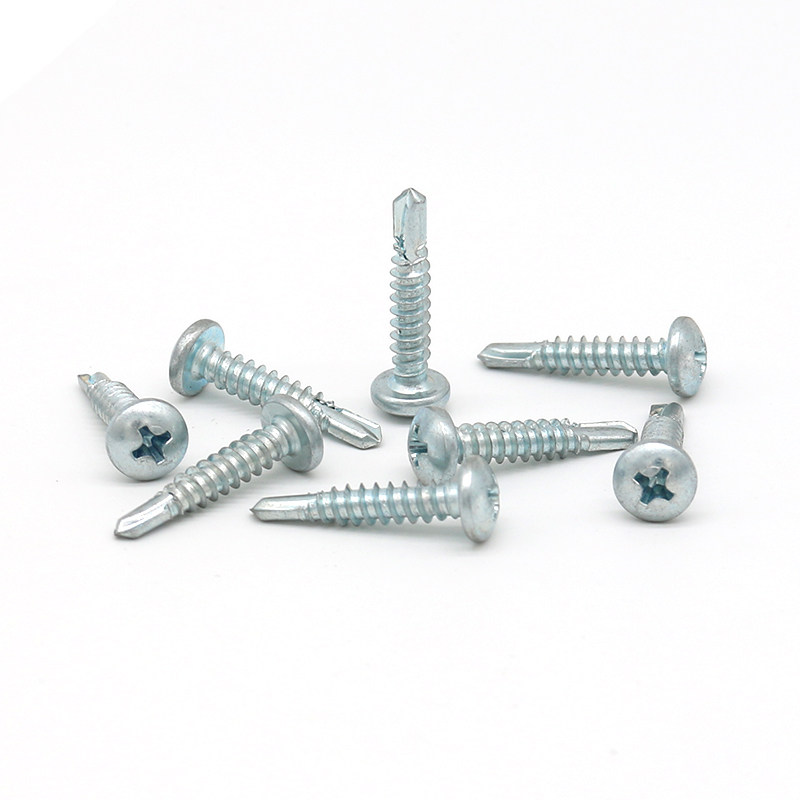

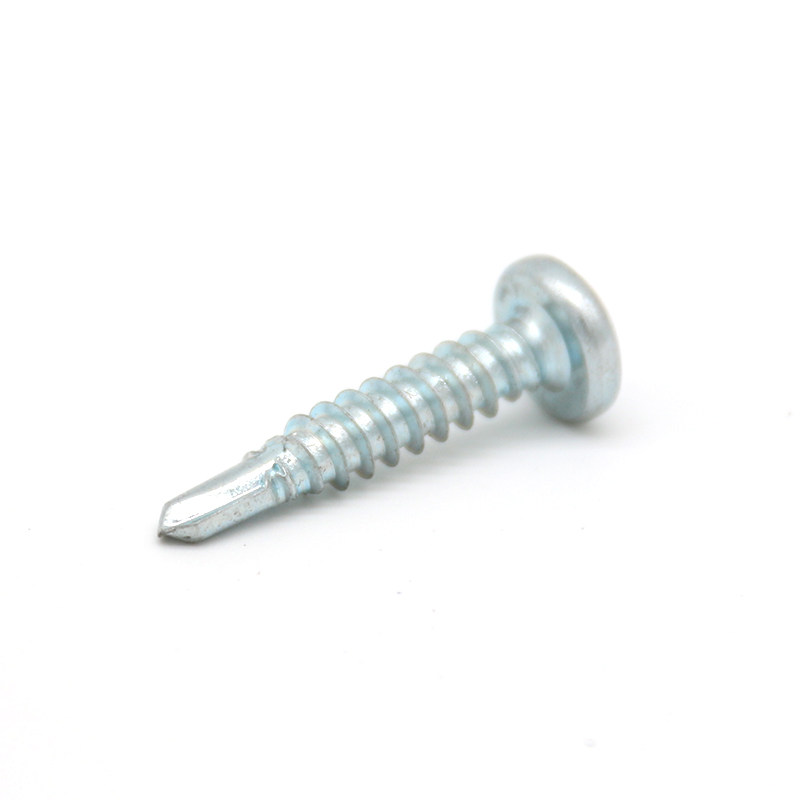

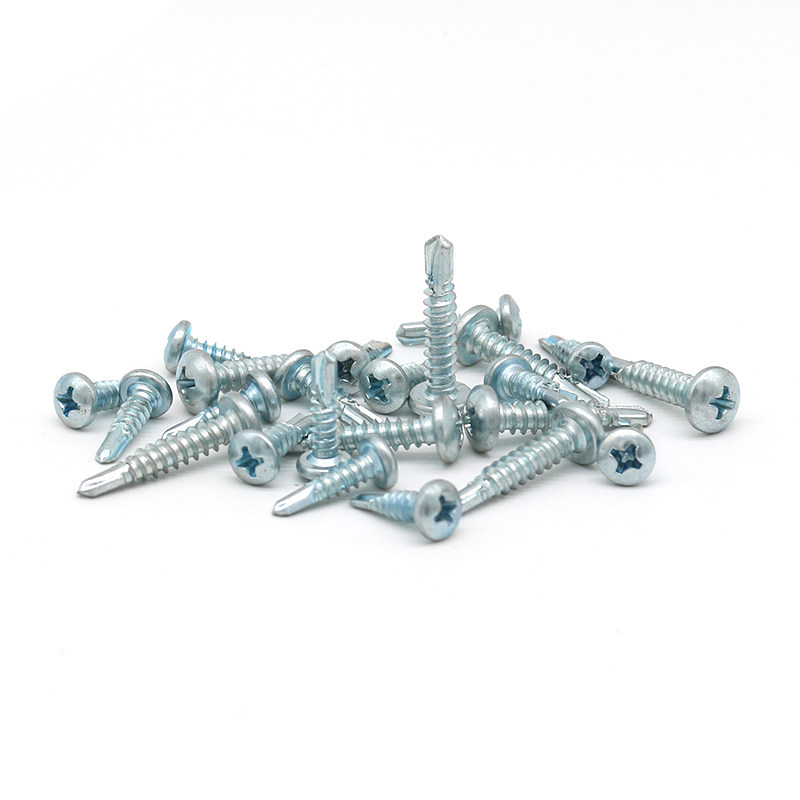

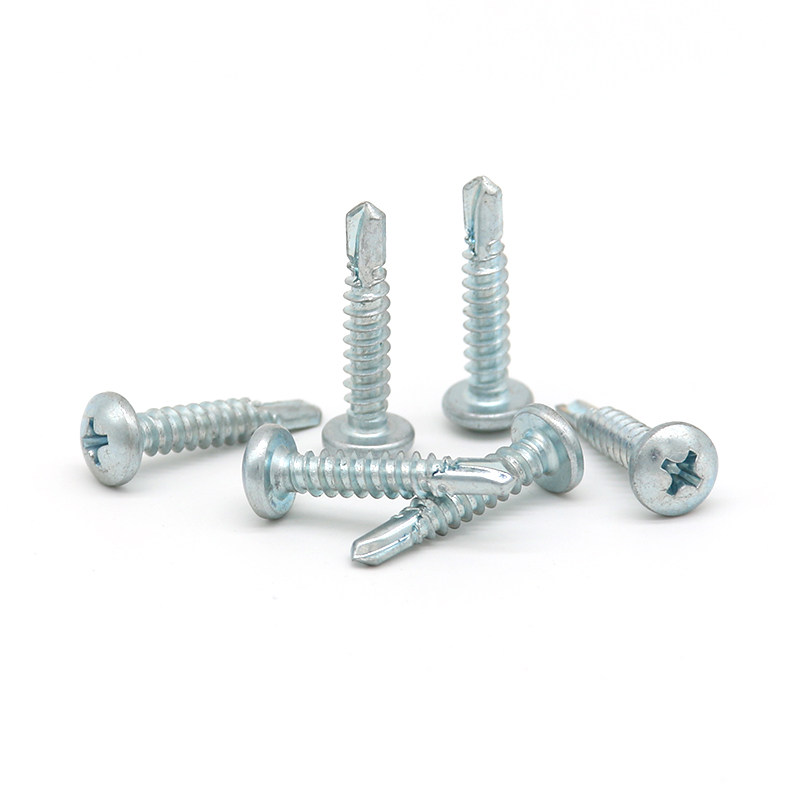

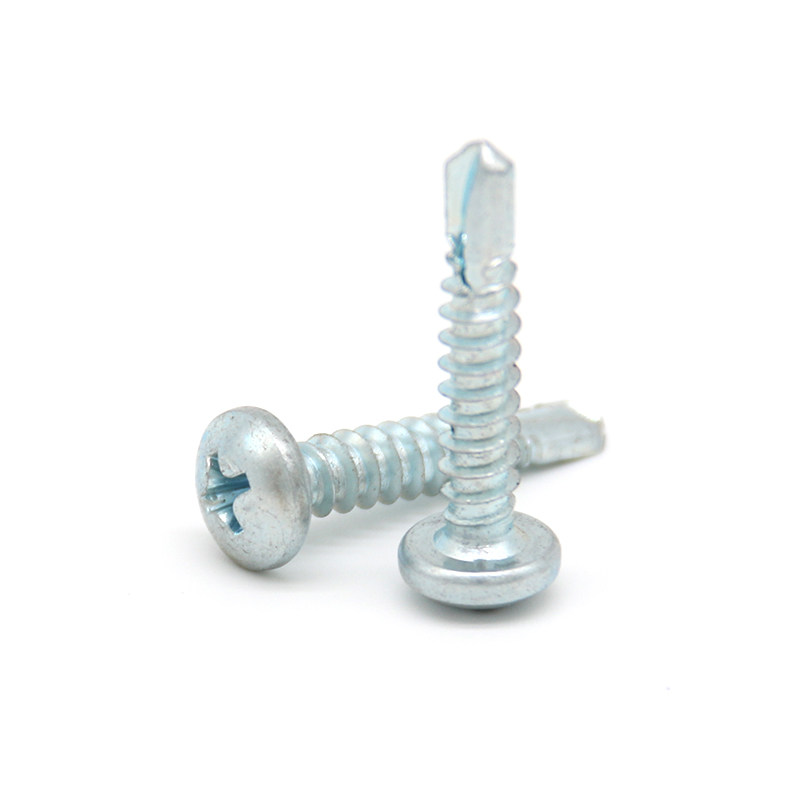

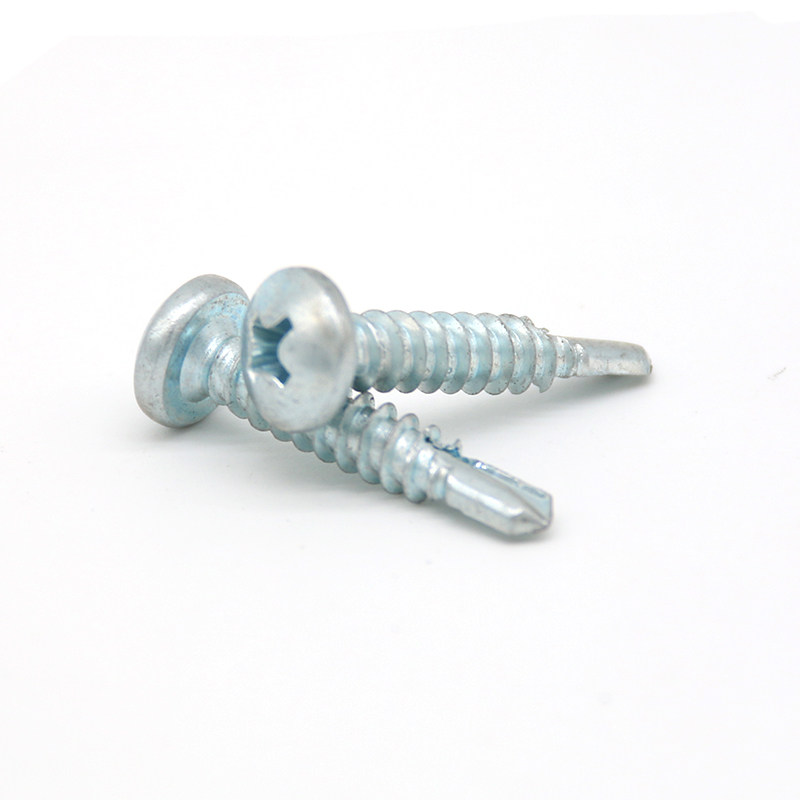

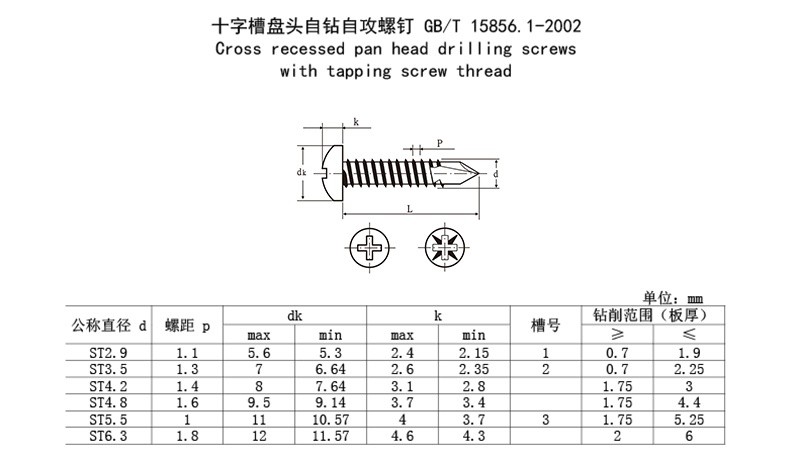

This product is manufactured strictly in accordance with national standard GB/T15856.1-2002. It adopts a rounded pan head with Phillips cross recess, mainly applied to assembly of electrical enclosures, plastic steel doors & windows, thin iron sheets, furniture hardware and sheet metal parts of small household appliances.

Equipped with an integrally formed drill tip, it eliminates pre-drilling and completes drilling and fastening in one operation. It is a universal mass-production fastener for light industrial electromechanical equipment and door & window fittings, with long-term bulk exports to hardware markets across Southeast Asia, the Middle East and Africa.

II. Raw Materials & Production Processes

Premium carbon steel is selected as raw material, resisting tip chipping and tail breakage when drilling thin steel sheets.

Complete production workflow: raw material rough drawing, annealing, phosphating, fine drawing, cold heading forming, drill tip shaping, thread rolling, thermal refining treatment, surface galvanizing and packaging.

The smooth rounded pan head leaves no protrusions to scratch paint coatings on workpieces after installation. Uniform and full thread profiles prevent thread stripping and substrate cracking when fastening thin plates. The blue-white zinc coating is dense and even.

III. Core Product Advantages

Smooth Rounded Pan Head to Protect Workpieces

The smooth curved head fits tightly against panel surfaces after tightening without sharp edges, avoiding scratches on coating surfaces of plastic and sheet metal parts. It is the preferred fastener for interior assembly of home appliances.

Full Coverage of National Standard Sizes

Complete series of national standard sizes match various 2–6mm thick cold-rolled steel sheets and galvanized plates, satisfying one-stop sourcing demands for multi-type thin plate assembly projects.

Flexible Multiple Coating Options

Standard blue-white zinc finish delivers high cost performance for general indoor use; color zinc features superior salt spray resistance for semi-open-air equipment; black oxide finish is low-cost for concealed assembly inside equipment cavities.

IV. Quality Control, Warehousing & Supporting Services

All national standard specifications are permanently stocked. Standard orders can be dispatched within 48 hours, and we accept small-batch trial orders as well as full-container export bulk orders.

Before delivery, sampling inspections are carried out per national standards to check pan head dimensions, cross recess strength, drill tip hardness and coating adhesion, screening out defective products with cracked slots, broken tips and flawed coatings.

Complete fastener sets bundled with countersunk self-drilling screws, hex head self-drilling screws and various self-tapping screws are available for shipment. Custom extended non-standard sizes can be produced against customer samples, with stable production capacity to guarantee long-term supply.
